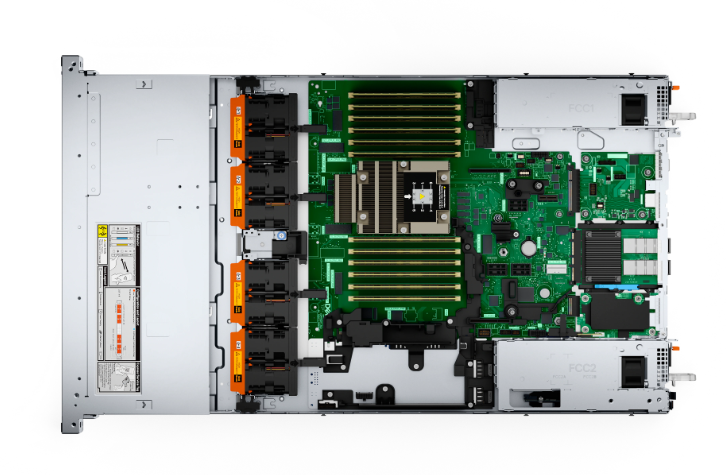

PowerEdge R6615 Rack Server
PowerEdge R6615 Rack Server
Exceptional value and performanceGo beyond the ordinary with 4th generation AMD EPYC™ processors in this dense single-socket server that is packed with value.
Tech Specs & Customization
Processor
1 x AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Chipset
AMD chipset
Accelerators
Up to 2 x 75 W SW
Memory
DIMM Speed
Up to 4800 MT/s
Memory Type
RDIMM
Memory Module Slots
12 DDR5 DIMM slot
Maximum RAM
RDIMM 3 TB
Storage
Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB
Up to 8 x 2.5-inch NVMe SSD max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Up to 14 x E3.S NVMe direct drives max 107.52 TB
Up to 16 x E3.S NVMe direct drives max 122.88 TB
Mid Bay
NA
Rear Bay
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x E3.S NVMe direct drives max 15.36 TB
Storage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
External Controllers
HBA355e
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB
Security
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
Dell Repository Manager
Dell System Update
Enterprise Catalogs
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager
Power Supplies
Power Supplies
1800 W Titanium 200—240 V AC or 240 HVDC, hot swap redundant
1400 W Titanium 277 V AC or 336 HVDC, hot swap redundant
1400 W Platinum 100—240 V AC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 V AC or 240 HVDC, hot swap redundant
1100 W LVDC -48 — -60 VDC hot swap redundant
800 W Platinum 100—240 V AC or 240 HVDC, hot swap redundant
700 W Titanium 200—240 V AC or 240 HVDC, hot swap redundant
Fans
Up to 4 hot plug fans
Ports
Network Options
2 x 1 GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Front Ports
1 x USB 2.0, 1 x USB 2.0
1 x VGA
Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0 1 x USB 2.0
1 x VGA 1 x USB 3.0
1 x Serial (optional)
Internal Port 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
Up to three PCIe slots (x16 connector)
Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length
Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length
Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
Video
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
1U rack server
Dimensions & Weight
Height
1.685 inches (42.8 mm)
Width
18.97 inches (482 mm)
Depth
30.39 inches (772.11 mm) with bezel
29.85 inches (758.27 mm) without bezel
Weight
Max 44.97 lbs. (20.4 kg)
Rack Support
ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Note: CMA is not supported in Direct Liquid Cooling configuration
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
